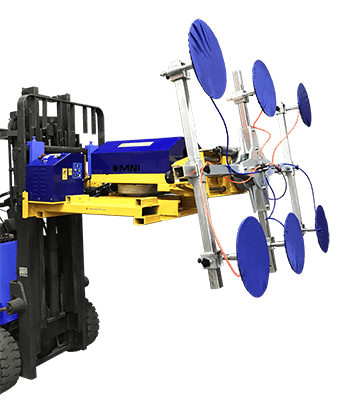

OMNI 1800

800 Kg (1800 Lbs)

The OMNI 1800 is easily attached to a forklift and can be used inside and outside a building envelope to allow for safe and efficient glazing of glass and windows weighing up to 1800lbs.

  • Lifting capacity up to 1800lbs
  • Six degrees of movement (with Wireless Remote):
    • 360 degree rotation
    • 12″ side shift
    • 40° side pivot – 20° left + 20° right
    • 12 inches Vertical lift
    • 100° forward tilt to horizontal
    • 12″ forward extension
  • Two wireless remote controls
  • Dual vacuum pump system
  • Glazing at elevated heights using a telehandler or off road forklift
  • Fully integrated and independent power supply
    to drive electric actuators and vacuum pumps
  • 4 x 12″ and 2 x 16″ adjustable vacuum cups
  • Easy to maintain and repair on site
  • Patents pending

Can also handle:

  • Composite panels
  • Steel
  • Granite/Marble
  • Plastics
  • Wood doors
  • Vacuum cups and modified frame to lift curved glass
  • Foam Vacuum Pads for Stone



Vacuum Cups & Modified Frame
for Curved Glass


Foam Vacuum Pads
for Stone

SPECIFICATIONS

Capacity: 1800lbs
Spring loaded vacuum cups
2 x wireless remote controls
4 x 12" and 2 x 16″ adjustable vacuum cups
Dual pump vacuum system
360 degree rotation
12” side shift
180° side pivot - 90° left + right
12” Vertical lift
100° tilt + parent tilt
12” forward extension
Secures to forklift tynes
Machine weight = 1397lbs
