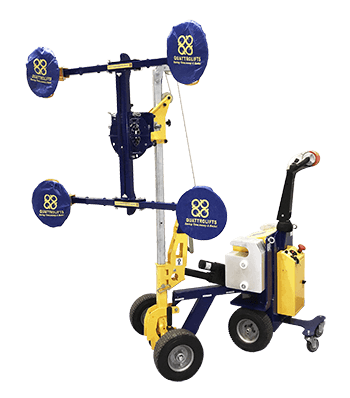

EXPRESS 770CWA

350 Kg (770 Lbs)

The Express 770CWA is designed to allow glaziers to unload, transport and install large plates of glass.

  • Lifting capacity up to 770lbs
  • Ideal for glazing in small confined areas
  • Vacuum head can be tilted, rotated and side shifted
  • 2 x 12″ + 2 x 10” adjustable and flexible vacuum cups
  • Moves glass over uneven ground on site
  • Swivel glass to side for transport through small doors
  • Battery operated rear tug
  • Battery powered vacuum system
  • Fully counterweighted machine
  • 2 x 12V 80Amp Hr Deep Cycle batteries
  • 1 – 2 man operation

Can also handle:

  • Composite panels
  • Steel
  • Granite/Marble
  • Plastics
  • Wood doors
  • Lower vacuum cup extensions
  • Forward vacuum cup extensions
  • Window frame carrier
  • Foam Vacuum Pads for Stone
  • Vacuum cups and modified frame to lift curved glass
  • Second Battery Powered Vacuum Pump for redundancy


Lower Extension


Forward Extension


Window Frame Carrier


Foam Vacuum Pads
for Stone


Vacuum Cups & Modified Frame
for Curved Glass



Second Battery Powered

Vacuum Pump for redundancy

SPECIFICATIONS

Lifting capacity: 770lbs
Removable mast extension (39")
Vacuum Cups: 4 x 12” manual
Pivots glass to side for doorways
Battery powered vacuum pump
Battery powered mast tilter +/- 10°
360° Glass rotation
100mm side shift
24v Rear drive TUG
Machine weight (Without CW's) 830lbs
10 x 33lbs Counterweights
Free floating vacuum head

TESTIMONIALS

Kym Wilson
Kym WilsonBayview Glazing QLD AUSTRALIA
Read More
Just a quick note to say what a great piece of equipment. As I am a glazier that has a buggered back and now confined to the shiny seat in the office I reckon if the Nomad was around 25 years ago I would still be glazing commercial. We have just done our first two reglazes both 12.38 laminate 2400 x 3400 aprox 1000 off the ground in a local shop front. Last time it took 3hrs and 6 men to reglaze 1 panel only including scaffold and back pain. This time 4 people and the Nomad, no scaffold and 2 panels took 1 hour including loading the old 12.38 lam on the truck!!!!!! Possibly could have used 3 people but being the first time, are to be sure to be sure! Instant success and the knockers are now believers!! We set a frame approx 2 mtrs square up in the factory and used a piece of 8.38 lam for practice and used 6 people to glaze the panel two times each as a training session before tackling possibly the biggest reglazes in town. Thanks for the prompt service and I will recommend this machine and your business anywhere anytime. Regards extremely happy” Kym Wilson
