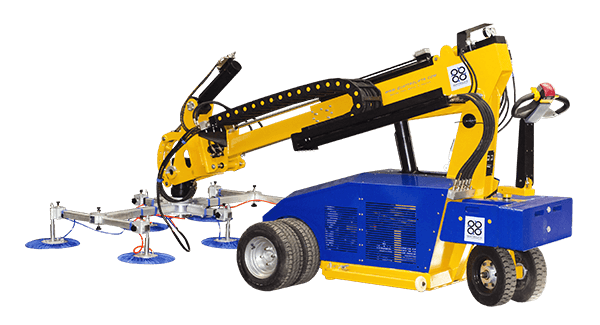

VECTOR 1800 OFF ROAD

800 kg (1800 lbs)

The Vector 1800 Off Road is designed to allow installers to unload, transport, and install large pieces of material with extreme precision.

  • Lifting capacity up to 800kg (1800lbs)
  • Dual pump vacuum system as a safety feature
  • Robotic lifting machine
  • Hydraulic rams for durability with precision
  • Remote control allows for precise material movement
  • 450mm (16”) wheels all round is ideal for on-site work
  • Variable hydraulic speed Dial
  • Both wired & wireless remote controls
  • Six degrees of movement:
    • 360-degree rotation
    • 200mm (8″) side shift
    • 20-degree side pivot – left + right (by remote) and 90-degree left side pivot (manual)
    • Vertical lift to 4000mm (160″)
    • 100-degree tilt range
    • 2000mm (80″) forward extension in front of machine

Suitable Materials Include:
  • Glass
  • Granite/Marble/Stone
  • Porcelain
  • Steel
  • Wood doors
  • Plastics
  • Composite panels
  • Vacuum cups and modified frame to lift curved material
  • Foam vacuum pads for stone
  • Electric lifting winch with hook
  • Front lifting hook
  • Purpose built trailer


Vacuum cups and modified
frame to lift curved materials


Foam vacuum pads
for stone

Electric lifting winch with hook

Dual front wheels


Vector 800 XR

available for extra reach (4400mm)

SPECIFICATIONS

Capacity: 1800lbs
Wired and Wireless (100ft range) remote controls allow for precise glass movement
Hydraulic System: 24v / 1300watts
Battery: 2x 150 AMP HR
Charger: 110 - 220v x 20 AHr
Vacuum Pumps: 2 x 24V, 35 lit/min
Vacuum cup range - 57" - 81"
Vacuum cup range - 57" - 81"
No-Load Lifting: 3/4 in/s
No-Load Climbing: 8% Gradient
SIDE SHIFT - 4.3"
Hydraulic rotation: 360°
Two front 18” puncture proof wheels (Option for two more)
Two rear 18” solid filled wheels
Outer wheels can be added for extra stability/traction
Backup wired remote control
Machine Weight: 2535 lbs, Counterweights: 1213 lbs
